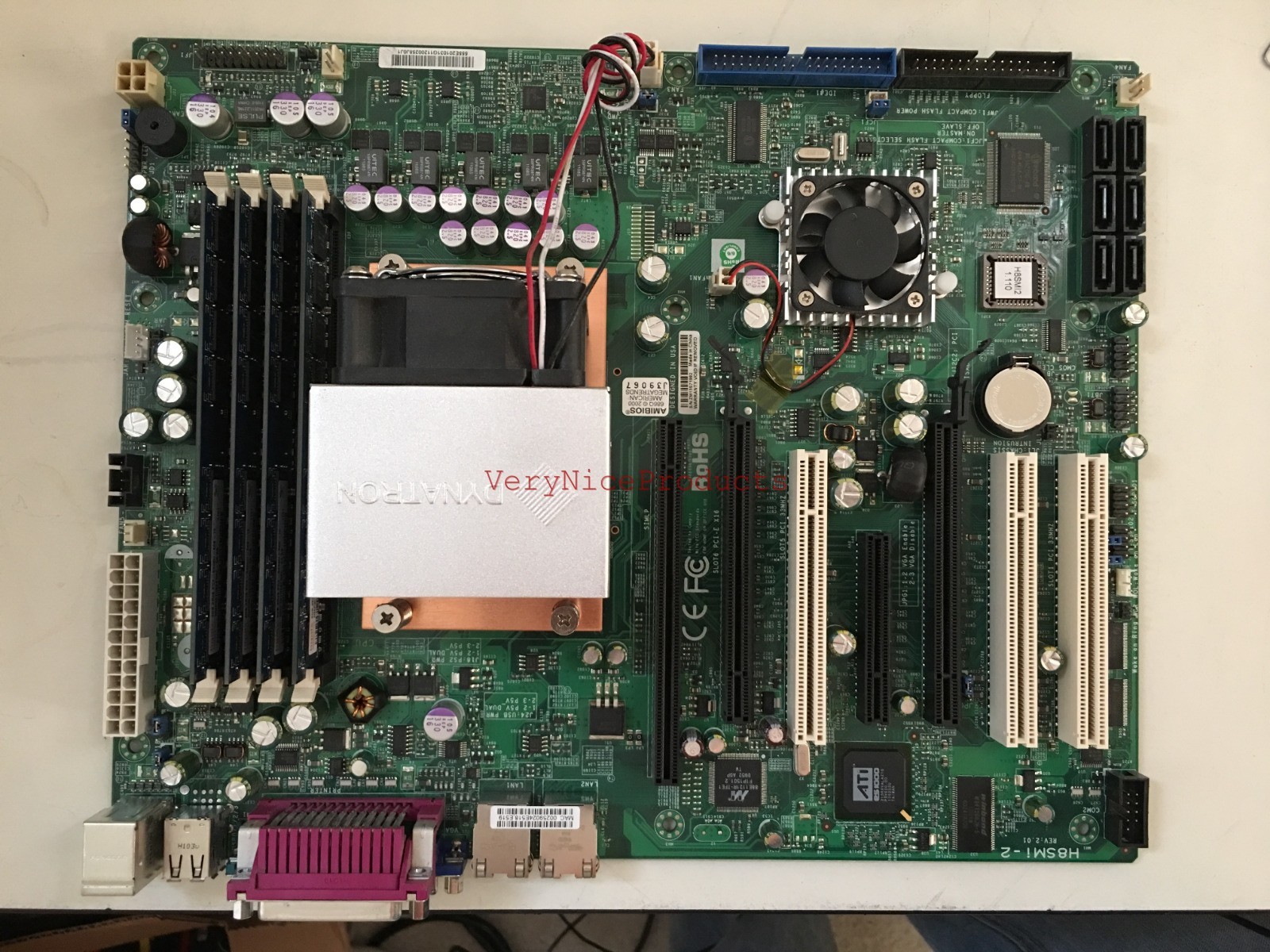

Supermicro H8SMI-2 Rev 2.01 ATX motherboard w/AMD Opteron 1385 2.7GHz 16GB DDR2
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Motherboard Brand | Supermicro |
| Form Factor | ATX |
| CPU Brand | AMD |
| CPU Series | Opteron |
| CPU Clock Speed | 2.7GHz |
| Socket Type | Socket AM2 |
| Bundle Listing | Yes |
| Expansion Slots | PCI |
| Memory Type | DDR2 SDRAM |
| Input/Output Ports | SATA II |
| CPU L2 Cache | 512KB |
| CPU L3 Cache | 6MB |
| Features | On-Board Video Chipset |
| Country/Region Of Manufacture | China |
Supermicro H8SMI-2 Rev 2.01 ATX motherboard w/AMD Opteron 1385 2.7GHz 16GB DDR2 Description : You are bidding on a New Pull (Pull from New System. Customer cancelled order) Supermicro H8SMI-2 Rev 2.01 ATX motherboard w/AMD Opteron 1385 2.7GHz 16GB DDR2 Note: All motherboard comes with I/O shield in OEM/Bulk package. This listing comes with Motherboard, AMD Opteron 1385 2.7GHz CPU, CPU Cooling Fan and DDR2 16GB Memory Specification:MBD-H8SMi-2-O H8SMi-2 (Standard Retail Pack) MBD-H8SMi-2-B H8SMi-2 (Bulk Pack) Physical Stats Form Factor ATX Dimensions 12" x 9.6 " (30.5cm x 24.4cm)6 layers Processor/Chipset CPU Single 940-pin AM2 SocketSupports one Quad-Core AMD Opteron™ 1000 Series (Socket AM2) processor NOTE: Motherboard PCB revision 2.xx is needed to support quad-core processor System Bus 1000MHz HyperTransport Chipset nVidia MCP55 Pro System Memory Memory Capacity Four 240-pin DIMM socketsSupports up to 8 GB DDR2 800/667/533 MHz memorySingle or Dual (recommended) channel memory Memory Type DDR2 800/667/533MHz un-buffered ECC / non-ECC SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 256 MB, 512 MB, 1GB, 2GB Memory Voltage 1.8V only On-Board Devices SATA nVidia MCP55 Pro SATA2 3.0Gbps Controller6 SATA PortsnVidia RAID 2.0SATA RAID 0, 1, 0+1, 5, JBOD Support IDE Supports UDMA Mode 5Supports PIO Mode 4Supports ATA/100/133 IPMI Support for Intelligent Platform Management Interface v.2.0200-pin IPMI slot(Optional: AOC-SIMLP-B(+) R 3.00) **(Optional: AOC-SIMLP-3(+) R 3.00) ** with 3rd LAN support(Optional: AOC-SIM1U(+) R 3.00) ** for 1U RMM (Remote Management Module)(Card not included) Network Controllers nVidia MCP55 Pro Chipset Dual-port LAN / Ethernet ControllerSupports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output VGA ATI ES1000 Graphics Controller 16MB Graphics & VGA port Super I/O Winbond 83627HF Input / Output SATA Up to six SATA2 devices IDE Single ATA 133/100 EIDE channels support up to two UDMA IDE devicesSupports UDMA Mode 5Supports ATA133/100 Floppy 1 Floppy port 1.44 MB LAN 2 RJ45 LAN ports USB 2 USB Rear Ports4 USB Internal Headers 6 Total USB 2.0 Compliant, 1.1 Compatible VGA 1 VGA port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Ports 1 Fast UART 16550 serial ports 1 Header Parallel Port 1 ECP / EPP parallel port Others 1 SATA DOM power connector Chassis ( Optimized for H8SMi-2 ) Important Chassis Notes To ensure system stability, a 300W (minimum) ATX power supply [4-pin (+12V) and 24-pin are required] Server(s) ( with H8SMi-2 ) Model(s) AS -1011M-T2 Expansion Slots PCI-Express 1 x16 PCI-e slot (nVidia SLI Technology Supported)1 x8 PCI-e using x16 slot1 x4 PCI-e using x8 slot PCI 3 PCI 32-bit, 33MHz slots System BIOS BIOS Type 4Mb Flash EEPROM with AMI® BIOS BIOS Features Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 2.0BIOS Rescue Hot KeysSMBIOS 2.3 USB Keyboard supportHardware BIOS Virus Protection Management Software Optional IPMI (Intelligent Platform Management Interface) 2.0 Super Doctor III Power Configurations ACPI Power ManagementWake-On-Ring (WOR) header Wake-On-LAN (WOL) headerMain Switch Override MechanismPower-on mode control for AC power loss recoveryInternal/External modem remote ring-on PC Health Monitoring CPU Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBATMonitor for HyperTransport voltage 1.2V, DDR termination 1.25VCPU switching voltage regulator FAN Total up to five 3-pin fan headers 5 Fan Status Tachometer monitoringStatus Monitor for Speed Control Temperature Monitoring for CPU and chassis environmentCPU Thermal Trip supportI2C temperature sensing logic LED CPU / Overheat LEDSuspend-state indicator LED+5V Standby Alert LED Other Features Chassis Intrusion HeaderChassis Intrusion DetectionChipkill Support Operating Environment / Compliance RoHS RoHS Compliant 6/6, Pb Free Environmental Spec. Operating Temperature: 10°C to 35°C (50°F to 95°F)Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)Operating Relative Humidity: 8% to 90% (non-condensing)Non-operating Relative Humidity: 5 to 95% (non-condensing) OS Compatibility • Please see our OS Compatibility Chart Regulatory FCC Passed to meet FCC standard requirement Shipping : Delivery time normally takes 2-7 business days in the USA depending what carrier you choose. International shipment will take upto 14 working days or longer. For international customer we do not cover any custom fees. It's your responsibilities for any fees associated with your purchase. We keep all the serial #s inhouse for verify returns. PLEASE READ CAREFULLY, DO NOT BID IF YOU DON'T AGREE WITH OUR TERMS! THANK YOU VERY MUCH! Payment : We accept PayPal. PayPal is preferred. Please pay within 3 days of auction closed. We ship to PayPal confirmed address only or your payment may have refunded. All sales are final. For Shipment and tracking # will be send within 24 hours of payment received. Thanks! Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge inkfrog terapeak inkFrog Analytics
